FENGSU.SWITCH & CONTROLLet’s talk technical
HomeProductsFS065

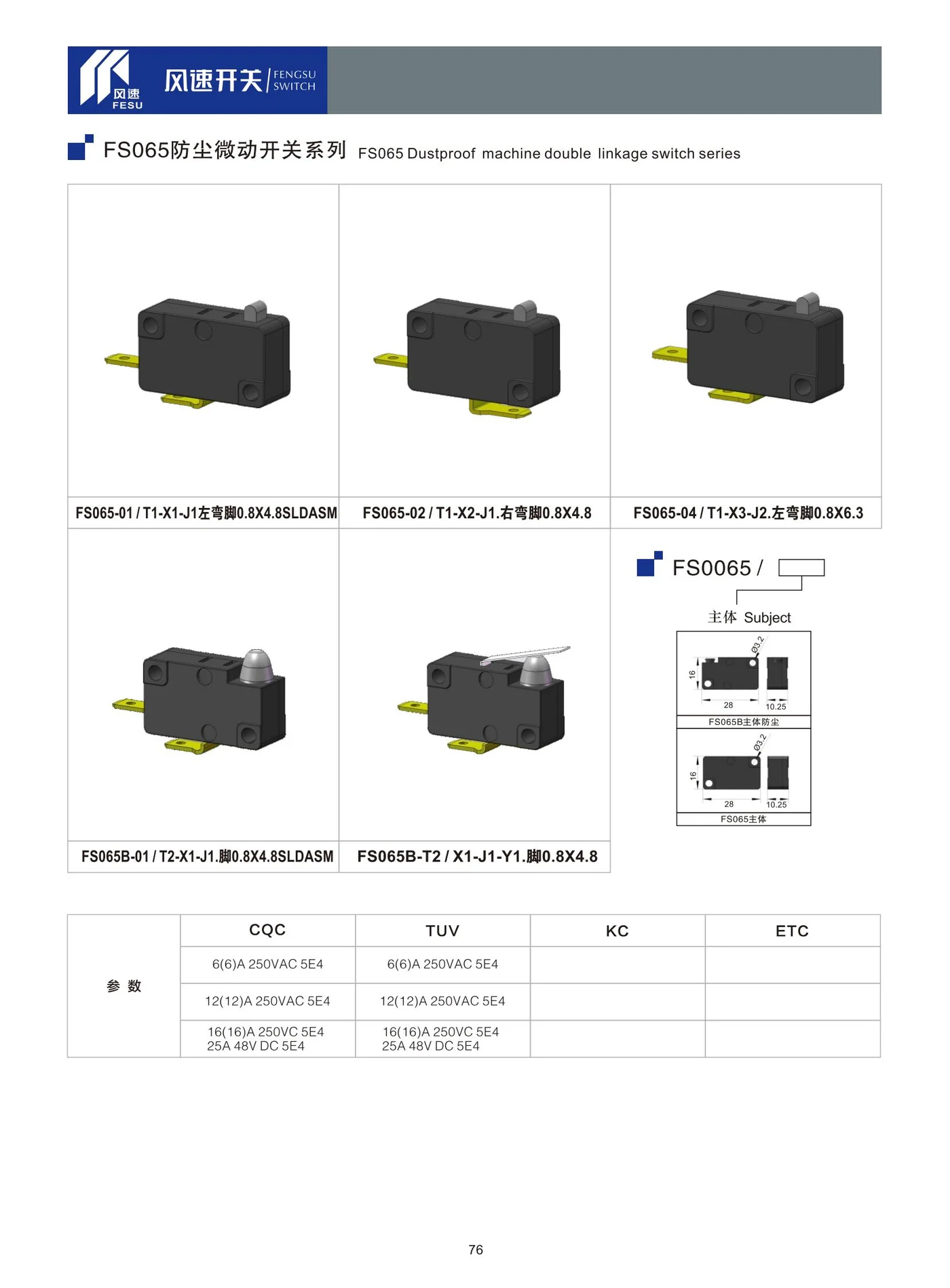

FESU / FS065 SERIESFS065-01 / T1-X1-J1 from the original 2023 catalogueIllustrated variant: FS065-01 / T1-X1-J1
View original catalogue page

Micro switches

FS065Micro switch

A compact micro-switch family shown with plunger and lever configurations. The source page includes body drawings and several published rating options; these are not interchangeable specifications.

Product family
FS065
Function
Micro-switch actuation
Catalogue reference
2023 edition · printed page 76
Rating & dimensions
Confirm for the selected variant
Availability / MOQ
On enquiry
Enquire about FS065View catalogue

Catalogue reference only. An illustration is not a dimensional drawing or a guarantee of interchangeability.

Variant references

Specify the complete part.

Series names are a starting point. The suffix identifies the configuration you need.

  • FS065-01 / T1-X1-J1
  • FS065-02 / T1-X2-J1
  • FS065-04 / T1-X3-J2

Published family ratings · 2023

  • 6(6) A 250 VAC 5E4
  • 12(12) A 250 VAC 5E4
  • 16(16) A 250 VAC 5E4
  • 25 A 48 V DC 5E4

Transcribed from the source-page table, not verified current specifications. Confirm which rating and approval applies to your exact variant and application.
